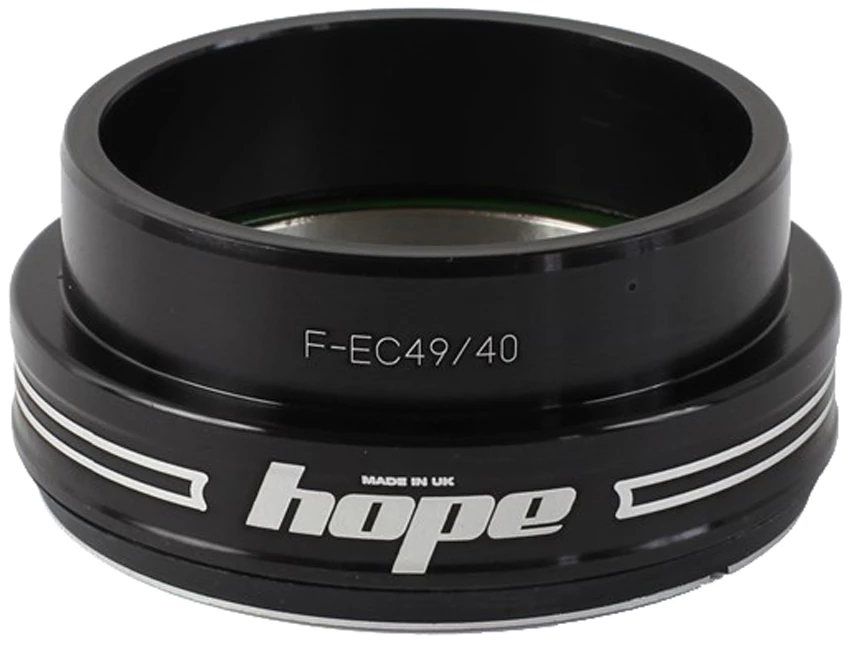

HOPE EC49/40 Headset Lower Part

Standard Ahead (EC) headset lower part EC 49/40 for 1 1/2″ tapered steerer with bearing shells made of aluminium. External Cup offers, because of its type of construction the biggest creative scope.

---

Product features – Hope EC49/40 Headset Lower Part for 1.5″ Tapered

• Model: Headset S.H.I.S EC49/40 (Standard Ahead 1 1/2″)
• Type: Standard Ahead (EC)
• Steerer: 1 1/2“
• Bearing: Industry Angular contact ball bearings
• Seal: integrated rubber seal
• Lower:
  • 1 1/2″ Cap – EC49
  • 1 1/2″ Angular contact ball bearings, sealed
  • Offset: 9.2mm
  • Mounting height: 14mm
  • Inside diameter: 49.7mm
  • Outer diameter 40mm
  • Fork cone: 1 1/2″

Material

• Bearings: Stainess steel
• Bearing cap lower: Aluminium
• Fork cone: Aluminium

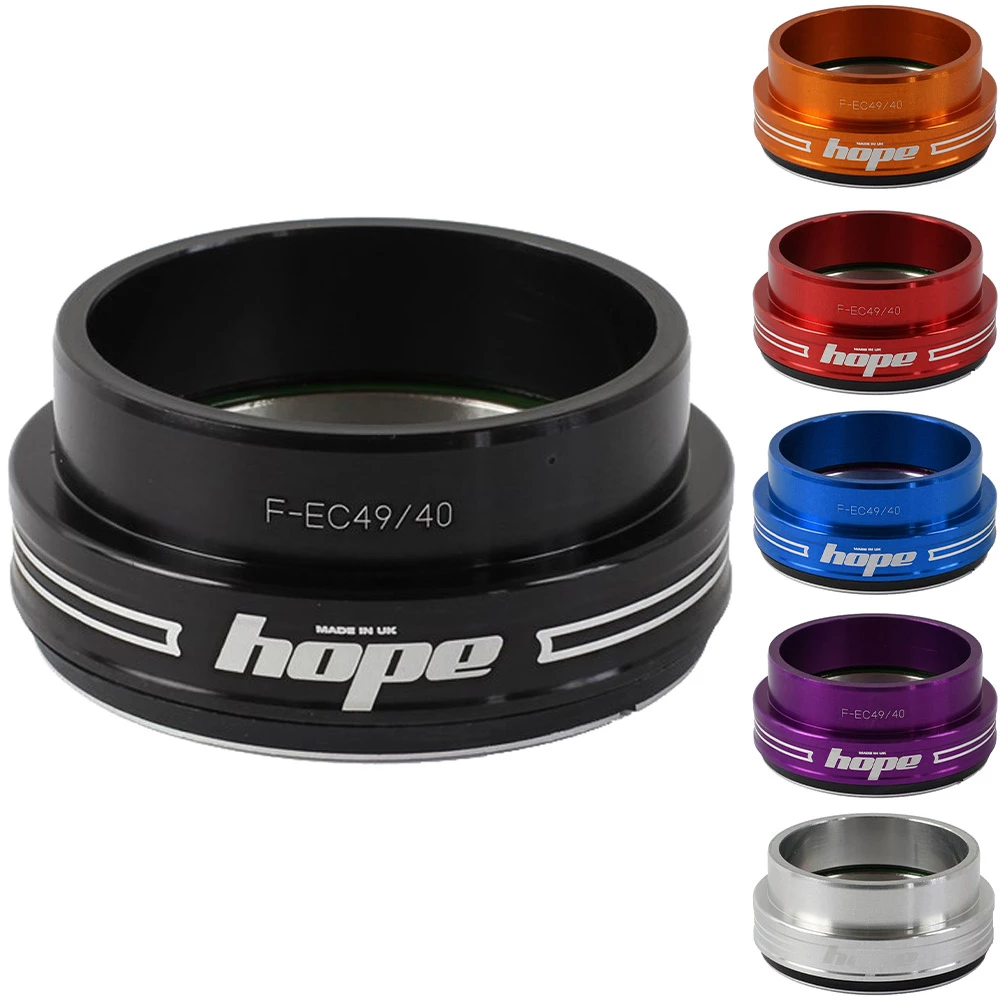

Color (choose variant)

• black

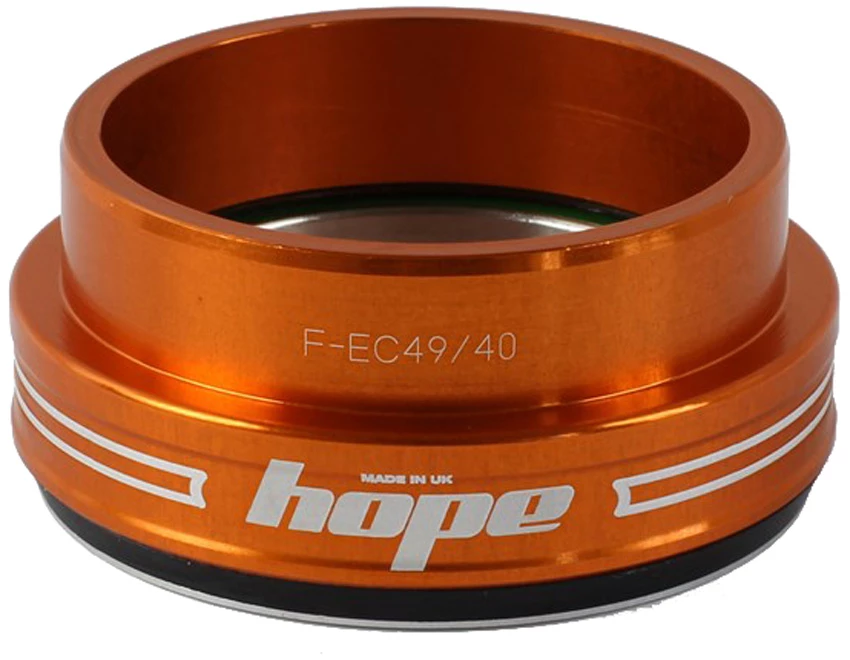

• orange

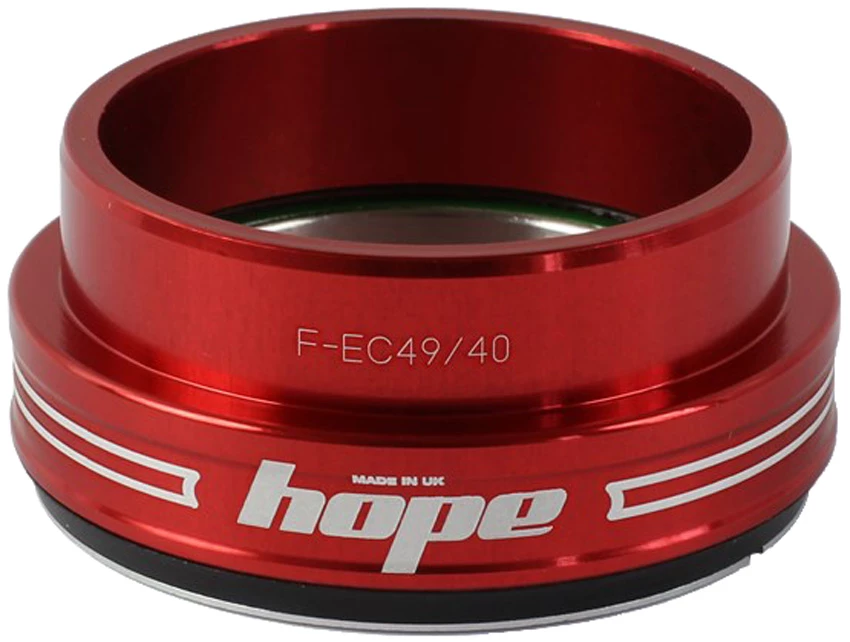

• red

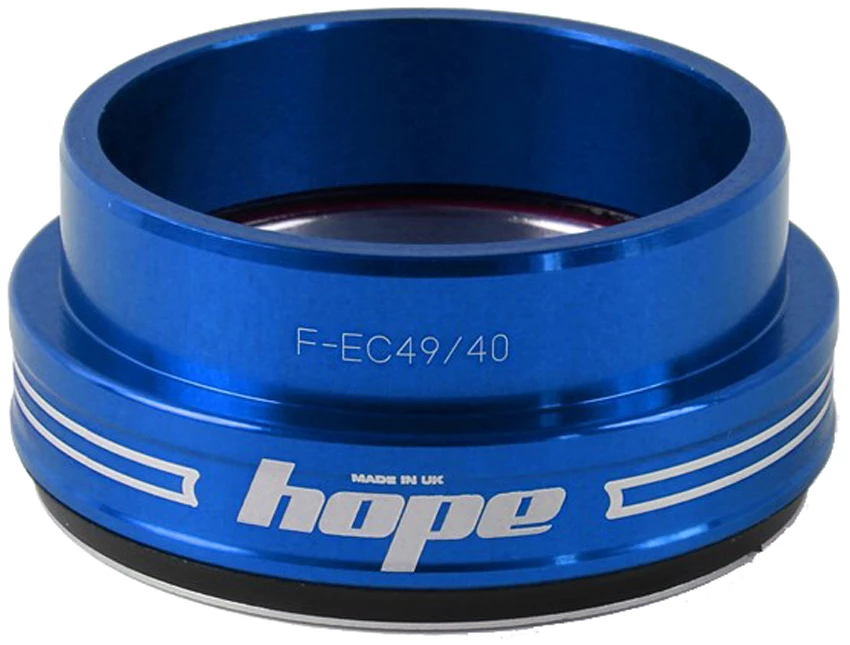

• blue

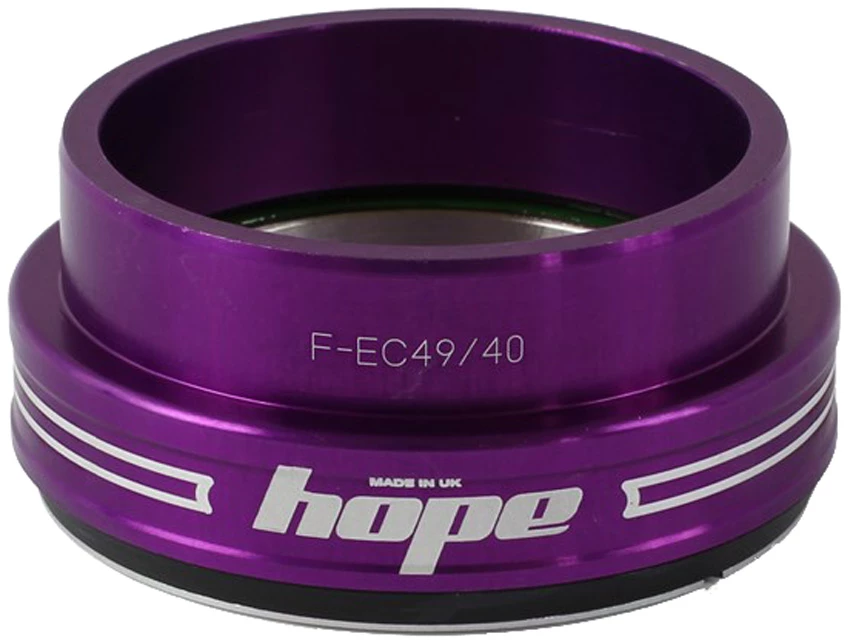

• purple
• silver

---

Scope of delivery

• 1 Hope Headset Lower Part EC49/40
• 1 Forke cone
